互感器
-
SCK7系列霍爾電流傳感器
產品概述：SCK7系列霍爾電流傳感器，額定電流：5A~50A，輸出電壓：±4V RL=10KΩ，工作電壓：DC ±12V or ±15V (±5%)。
- 詳細介紹
板上安裝SCK7系列霍爾電流傳感器
型號：SCK7
額定電流： 5A~50A
輸出電壓：±4V RL=10KΩ
工作電壓： DC ±12V or ±15V (±5%)
技術指標：
| Parameters(25°C)/Model | SCK7- | ||||||
| 5A | 10A | 15A | 20A | 25A | 30A | 50A | |
| Nominal Rms Current (Ipn) | ±5A | ±10A | ±15A | ±20A | ±25A | ±30A | ±50A |
| Measuring Range (Ip) | 2*Ipn | ||||||
| Output Voltage | ± 4V RL=10KΩ | ||||||
| Working voltage | DC ±12V~±15V(±5%) | ||||||
| Accuracy @ Ta=25°C | ±1% FS | ||||||
| Linearity @ Ta=25°C | ±1% FS | ||||||
| Withstand voltage | 2.5kVrms/50Hz/min | ||||||
| Input Offset Voltage | < ±40mV | ||||||
| Offset temperature characteristics | < ±0.1%/°C | ||||||
| Thermal drift of Vo | < ±1.5mV/°C | ||||||
| Hysteresis offset | < 30mV (if=F.S. 0<--- --->Nominal RMS Current) | ||||||
| Response time | < 5uS | ||||||
| Current consumption | <15mA | ||||||
| Operating temperature | -20~+80 °C | ||||||
| Storage temperature | -40~+85 °C | ||||||

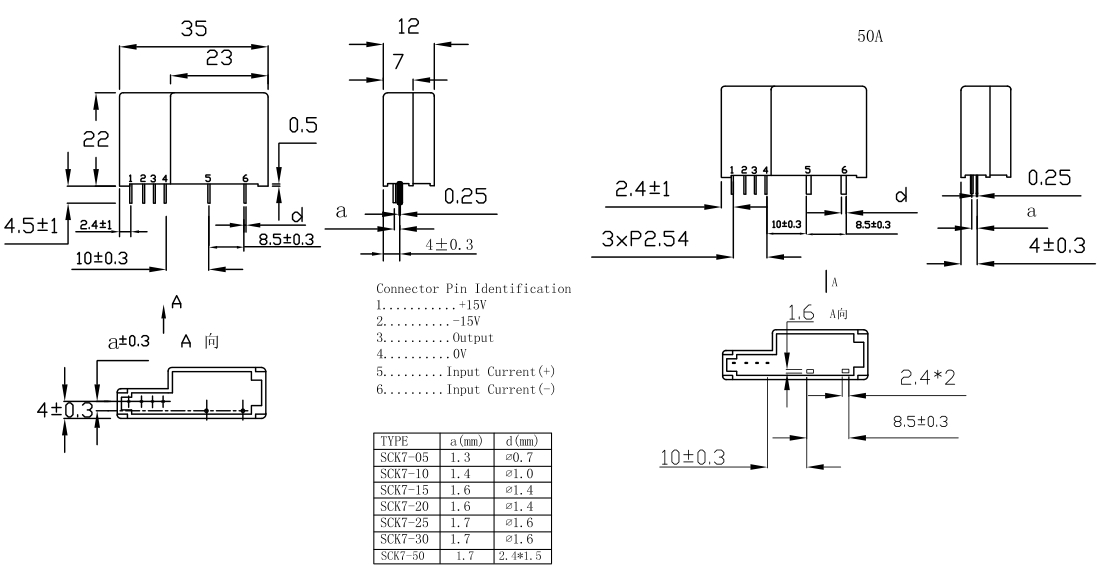

產品尺寸:
